Project Description

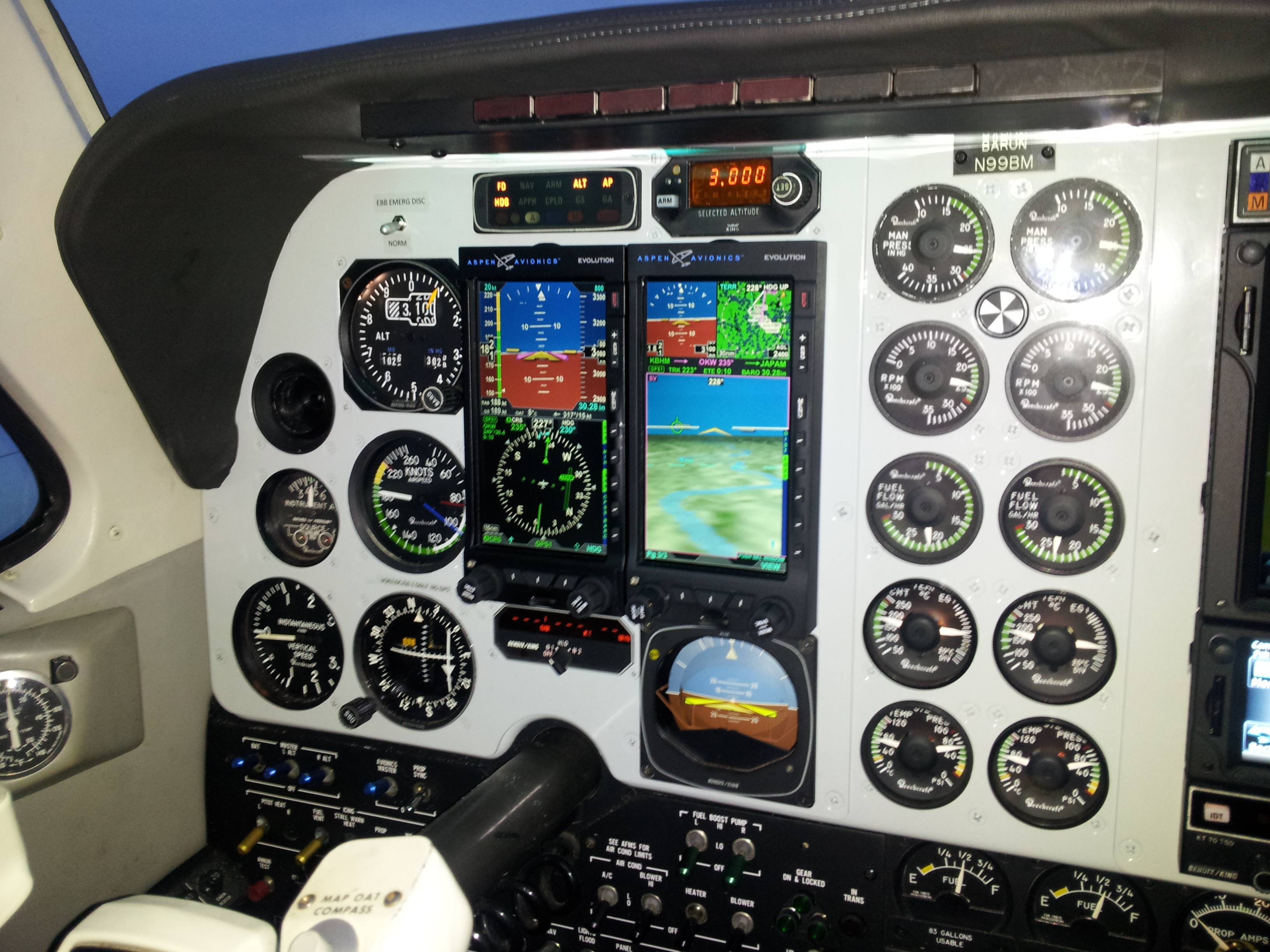

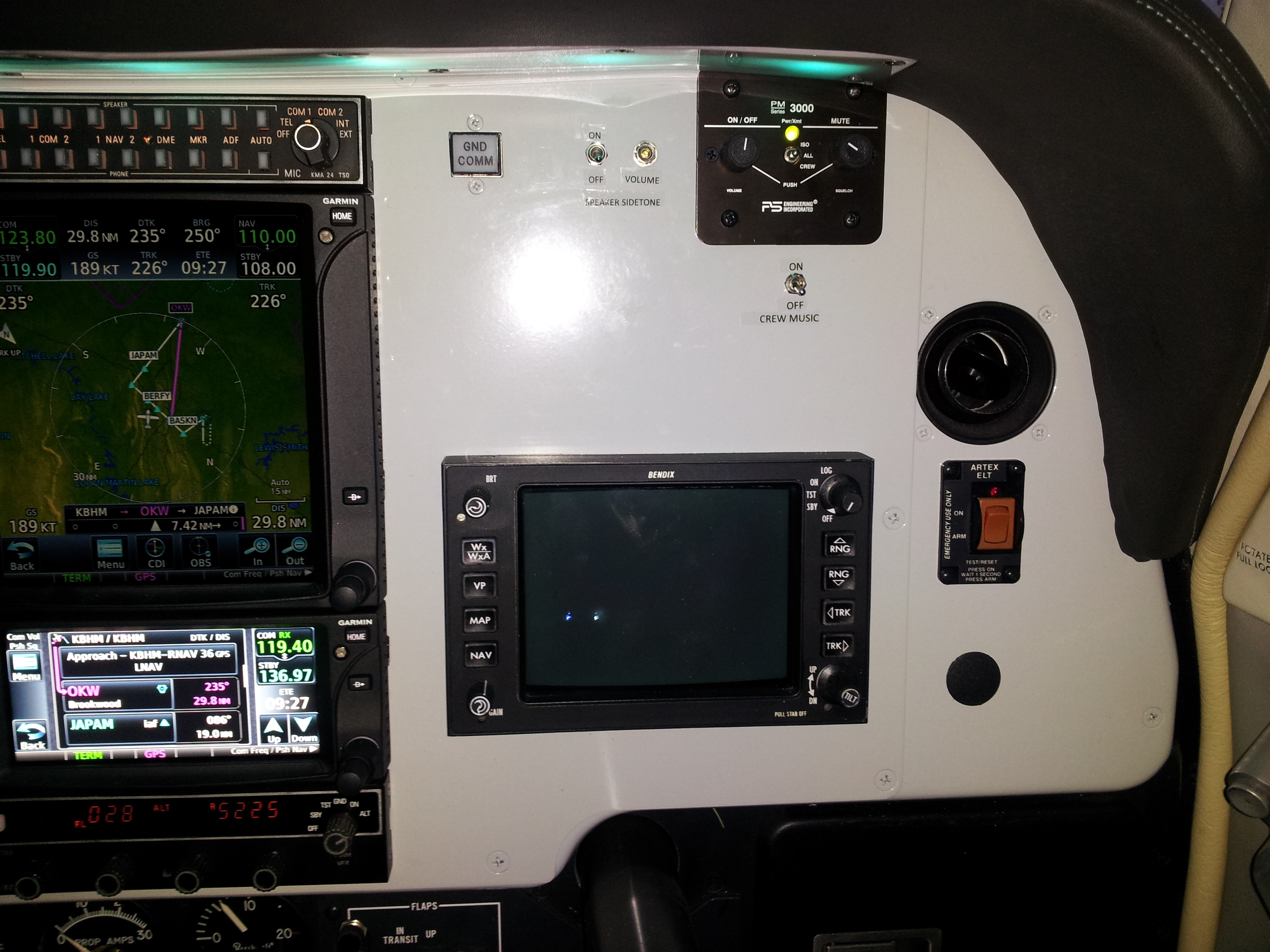

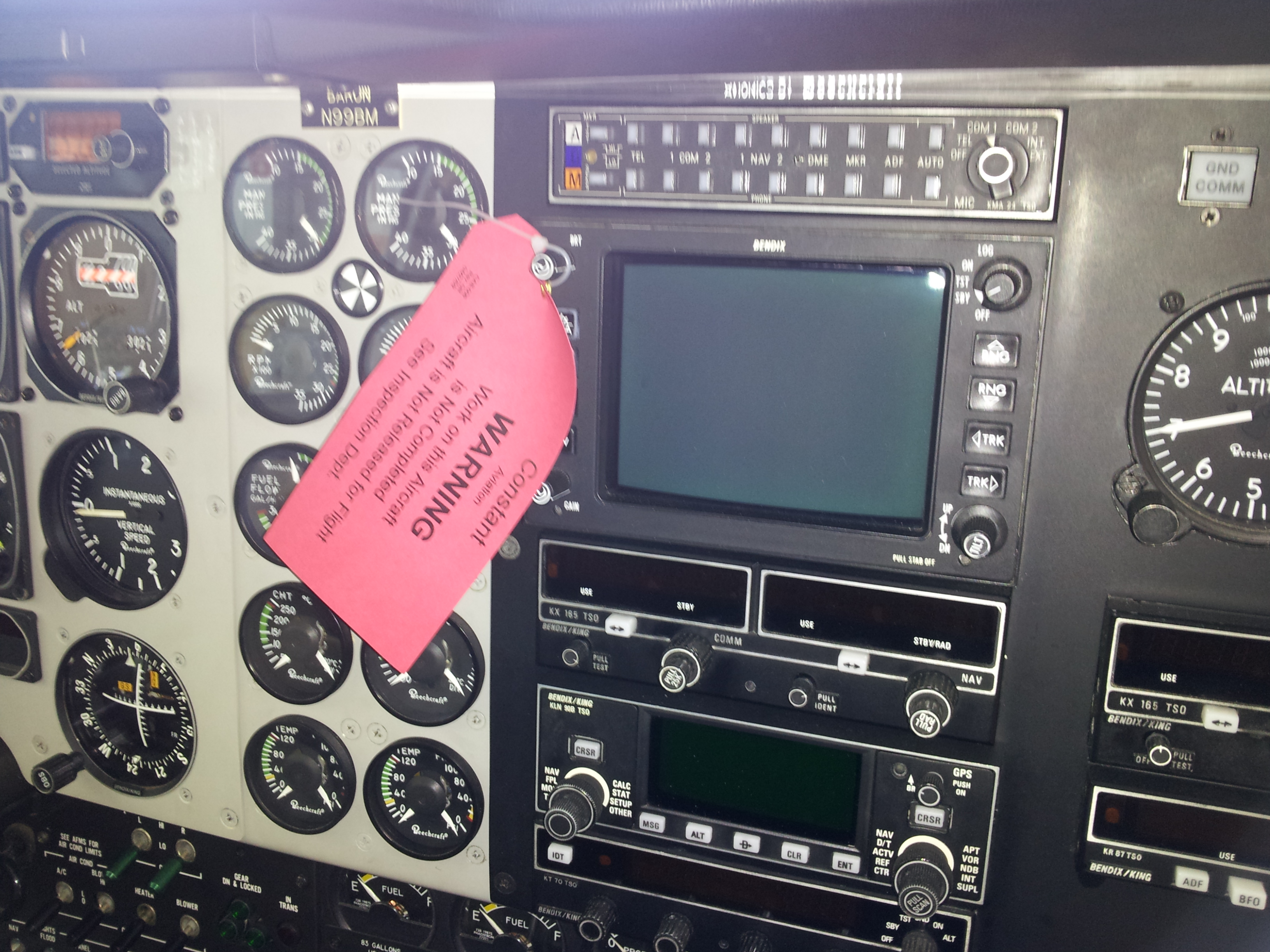

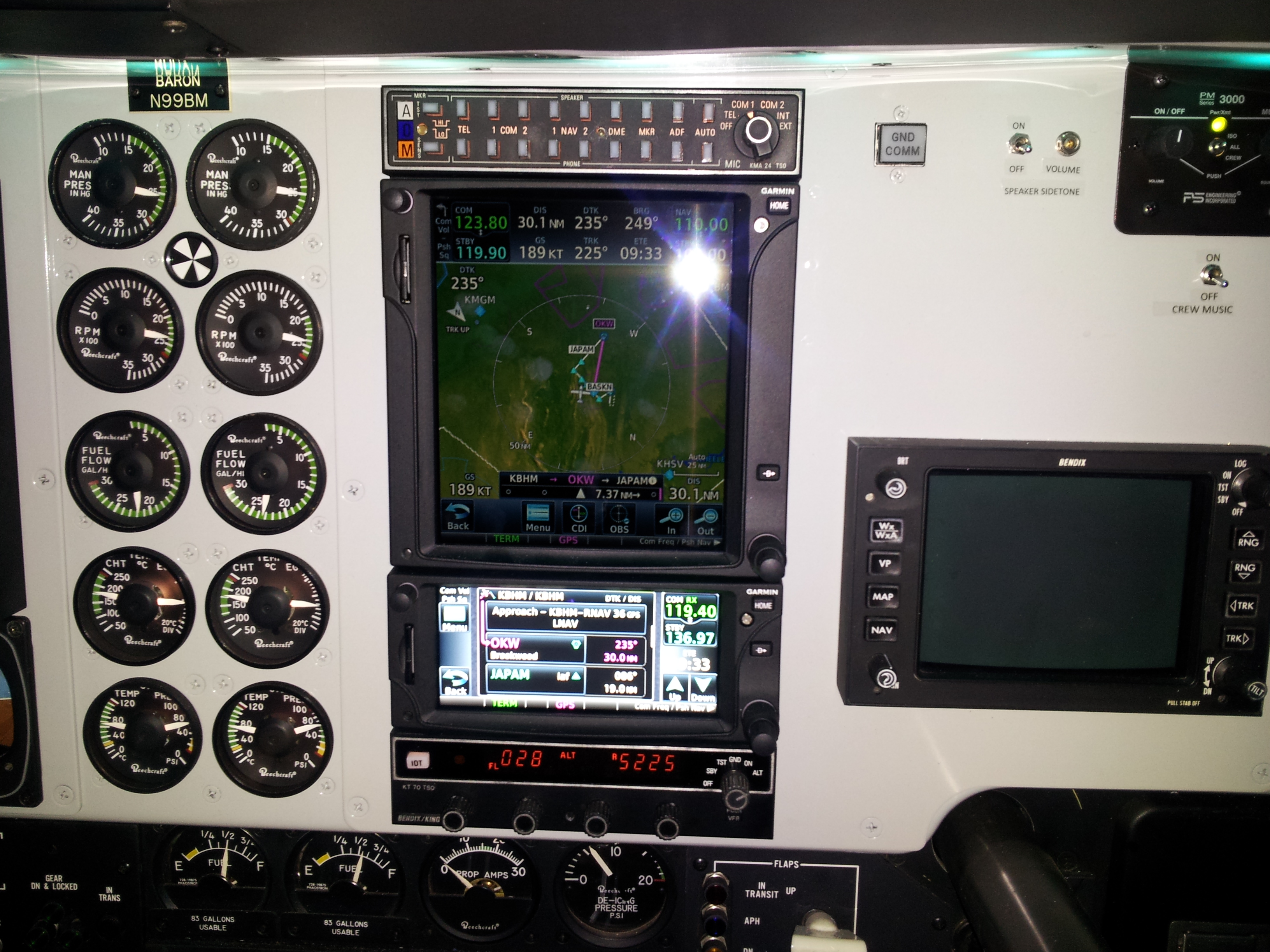

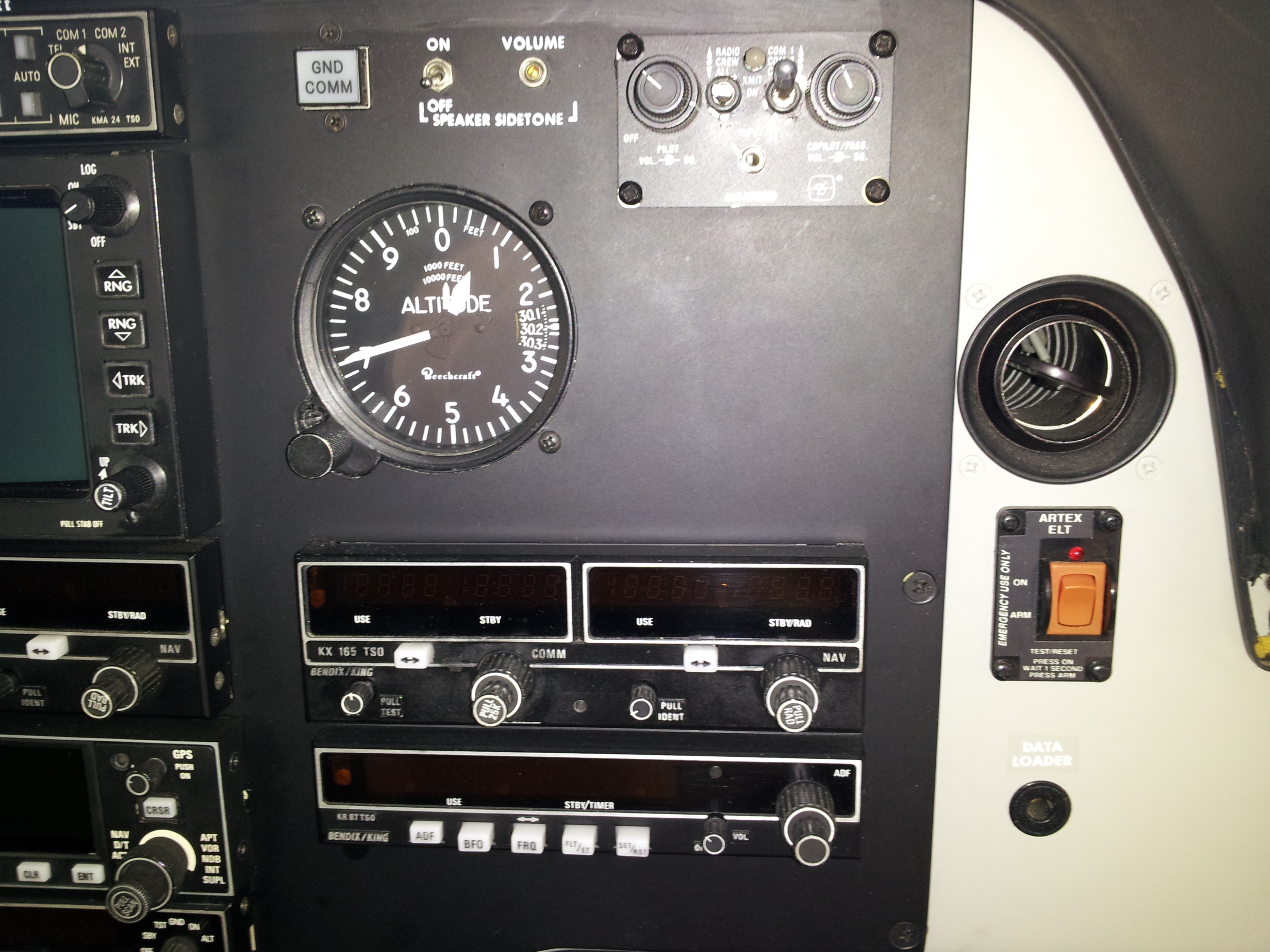

This Baron was factory equipped with the standard Honeywell analog avionics suite with KLN 90B, KX 165, KI 525A, KI 256 and KFC 200 autopilot. Most of that was removed and a new instrument panel was fabricated for the pilot panel as well as a new radio stack panel. The remaining full instrument panel was removed and all panel pieces were powder coated. The G500 remote equipment was installed in the nose of the aircraft. An Aspen Pro 1000 PFD and MFD were installed in the pilot panel. A GTN 750 and GTN 650 was installed replacing the majority of the radio stack.
